The FIS GT.M SNMP Plugin is a ready-to-use subagent that makes information from InfoHub available for monitoring via SNMP. It uses the Internet standard (RFC-2741) AgentX protocol to communicate with an SNMP Master Agent. Because FIS tests the SNMP Plugin with Net-SNMP ( http://www.net-snmp.org) as the SNMP Master Agent, Net-SNMP is Supported and other SNMP Master Agents are Supportable but not Supported.

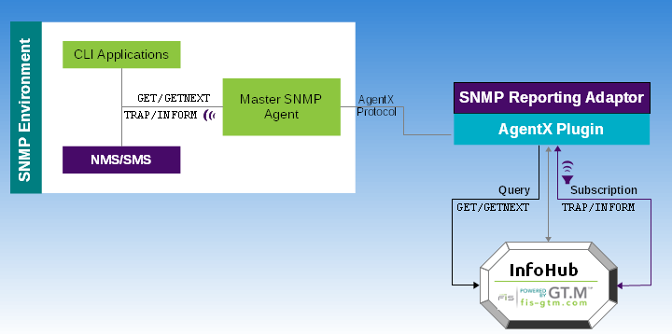

The SNMP Plugin is a Reporting Adaptor that has both Query and Subscriber relationships with InfoHub. The following diagram illustrates how the SNMP Plugin interacts with InfoHub to handle requests for data retrieval and notifications from an SNMP environment.

A data retrieval request initiated from CLI applications such as snmpget/snmpgetnext goes to the Master SNMP Agent using the SNMP protocol. The Master SNMP Agent uses the AgentX protocol to communicate the request to the SNMP Plugin which uses its Query relationship with InfoHub to retrieve the requested data and sends it to back to the Master SNMP Agent. CLI applications such as snmptrapd set up a listener for receiving notifications. When a configured condition occurs on InfoHub, the SNMP Plugin uses its Subscriber relationship to obtain notification details and sends them to the SNMP Master Agent which then sends it to the listener waiting for notifications.

In an SNMP environment, data values are organized in a tree structure called an MIB (Management Information Base). The MIB hierarchy starts with a nameless root and extends to specific areas of information. Typically, an organization has several MIB modules connected hierarchically with each other. Each object is addressed using a fully qualified OID starting from the nameless root. An OID can be represented in numeric or mnemonic form. A fully qualified OID in numeric form looks like:

.1.3.6.1.4.1.16830.6.2.1.2.1.1482247793.1.314.0

The same OID in mnemonic form might looks like:

.iso.org.dod.internet.private.enterprises.fis.profile.gtm.infohub.profile1curr.uatenv1curr.syslogcurr.SyslogAllcurr.0

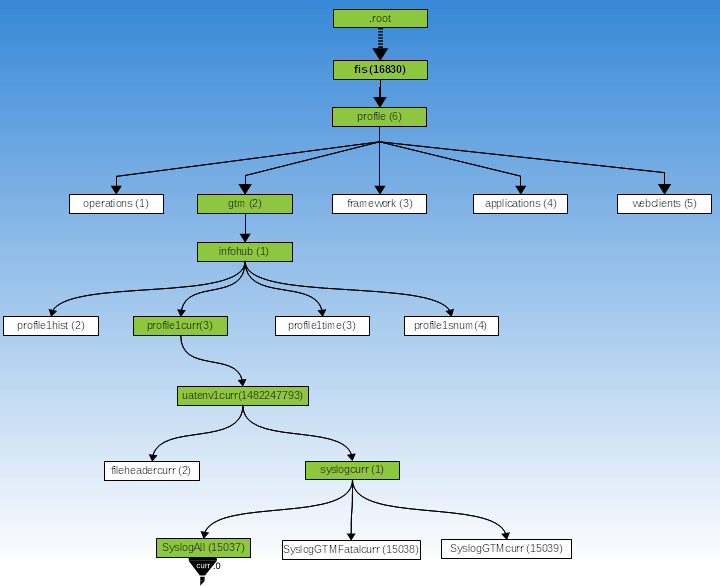

The following diagram illustrates the fully qualified OID .1.3.6.1.4.1.16830.6.2.1.2.1.1482247793.1.314.0 in an MIB that contains an InfoHub MIB module sub-tree. The numeric forms are enclosed in brackets ().

The non-white boxes represent the OID sub-subtree in the InfoHub MIB module. In the illustration, the InfoHub MIB module hierarchy starts from 16830.6.2 where:

InfoHub maintains the current and historic data values of monitored elements in the form of Views. InfoHub provides four Views – curr, hist, time, and snum. Views are different ways of looking at the current and historic data values of an object. A View is like a filter applied on an object to narrow down to only those data values that you want to see from an InfoHub. Every object under an InfoHub has four stems each representing a View. All objects under a stem have the same View Name as the suffix. The last (leaf) node of each stem is the monitored object for which you need to specify a parameter called an Object Index.

The objective of stemming of the same object into four Views is to comply with the namespace restriction that all individual pieces of an OID in an MIB to be unique. The non-white boxes in the OID illustrate a fully qualified mnemonic OID of the most recent (curr) object stored on the system log and the curved connectors denote stemming into Views. Notice how each object under .profilecurr has the curr suffix and the leaf node requires specifying an Object Index^[2].

To obtain the current or historic data of any monitored element, you need to perform a GET request (refer to "Performing a GET Request") for either the fully qualified OID as illustrated in the OID diagram or just the leaf node (for example, .infohubprofile1uatenv1SyslogAllcurr.0).

The four Views are as follows:
